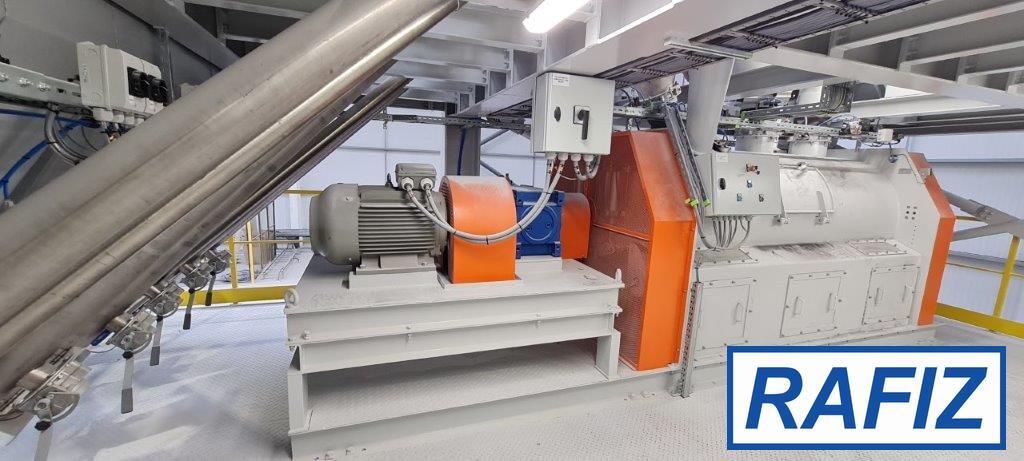

Mixers for bulk materials
Mixers for bulk materials on offer:
Batchwise mixers for loose materials
Designed for building chemicals mixing (from sand to highly dispersive mixes), granulated
products, feeds, fertilizers, etc.
We make them from the stainless or carbon steel, abrasive-resistant, with the point outlet or
with the opened bottom.
Sizes: from the laboratory 10litre to the production ones with the useful volume from 200 to
6000litres.
Mixing time: from 1 to 4 minutes, depending on the mixed product.
Loose materials mixers – continuous mixing
Designed for mixing of loose and sticky products with fluid admixtures, e.g. fine coal with the
fluid binder.
The type and output are calculated according to the Customer’s needs.
MT mixers - for bulk materials
| Drive power [ kW ] |
0,55 |
| Working capacity V1 max [ l ] |
15 |
| Minimal portion V2 min [ l ] |
5 |
| Blenders [ kW ] |
0,18 |
| Blenders [ unit] |
1 |
| Mixer diameter DN |
272 |
| Cylinder length L1 [ mm ] |
386 |
| Average mixing time [ s ] |
70-180s |
| Outlet type D / unit |
1 |
| Outlet type B1 |
No |
| Outlet type B2 |
No |
| Drive power [ kW ] |
5,5 / 7,5 |
| Working capacity V1 max [ l ] |
150 |
| Minimal portion V2 min [ l ] |
50 |
| Blenders [ kW ] |
3 |
| Blenders [ unit ] |
1 |
| Mixer diameter DN |
558 |
| Cylinder length L1 [ mm ] |
900 |
| Average mixing time [ s ] |
70-180s |
| Outlet type D / unit |
1 |
| Outlet type B1 |
No |
| Outlet type B2 |
No |
| Drive power [ kW ] |
7,5 / 11 |
| Working capacity V1 max [ l ] |
300 |
| Minimal portion V2 min [ l ] |
100 |
| Blenders [ kW ] |
3 |
| Blenders [ unit ] |
1 |
| Mixer diameter DN |
710 |
| Cylinder length L1 [ mm ] |
1100 |
| Average mixing time [ s ] |
70-180s |
| Outlet type D / unit |
1 |
| Outlet type B1 |
No |
| Outlet type B2 |
No |
| Drive power [ kW ] |
11 / 18,5 / 22 |
| Working capacity V1 max [ l ] |
500 |
| Minimal portion V2 min [ l ] |
375 |
| Blenders [ kW ] |
5,5 |
| Blenders [ unit ] |
1 |
| Mixer diameter DN |
914 |
| Cylinder length L1 [ mm ] |
1100 |
| Average mixing time [ s ] |
70-180s |
| Outlet type D / unit |
1 |
| Outlet type B1 |
Yes |
| Outlet type B2 |
No |
| Drive power [ kW ] |
22 / 30 / 37 |
| Working capacity V1 max [ l ] |
750 |
| Minimal portion V2 min [ l ] |
225 |
| Blenders [ kW ] |
7,5 |
| Blenders [ unit ] |
2 |
| Mixer diameter DN |
914 |
| Cylinder length L1 [ mm ] |
1800 |
| Average mixing time [ s ] |
70-180s |
| Outlet type D / unit |
1 |
| Outlet type B1 |
Yes |
| Outlet type B2 |
Yes |
| Drive power [ kW ] |
37 / 55 |
| Working capacity V1 max [ l ] |
1200 |
| Minimal portion V2 min [ l ] |
360 |
| Blenders [ kW ] |
7,5 |
| Blenders [ unit ] |
2 |
| Mixer diameter DN |
1016 |
| Cylinder length L1 [ mm ] |
2010 |
| Average mixing time [ s ] |
70-180s |
| Outlet type D / unit |
1 or 2 |
| Outlet type B1 |
Yes |
| Outlet type B2 |
Yes |
| Drive power [ kW ] |
37 / 55 / 75 |
| Working capacity V1 max [ l ] |
1500 |
| Minimal portion V2 min [ l ] |
450 |
| Blenders [ kW ] |
7,5 |
| Blenders [ unit ] |
3 |
| Mixer diameter DN |
1220 |
| Cylinder length L1 [ mm ] |
2000 |
| Average mixing time [ s ] |
70-180s |
| Outlet type D / unit |
1 or 2 |
| Outlet type B1 |
Yes |
| Outlet type B2 |
Yes |
| Drive power [ kW ] |
55 / 75 / 110 |
| Working capacity V1 max [ l ] |
2300 |
| Minimal portion V2 min [ l ] |
690 |
| Blenders [ kW ] |
7,5 |
| Blenders [ unit ] |
3 |
| Mixer diameter DN |
1220 |
| Cylinder length L1 [ mm ] |
2750 |
| Average mixing time [ s ] |
70-180s |
| Outlet type D / unit |
1 or 2 |
| Outlet type B1 |
Yes |
| Outlet type B2 |
Yes |
| Drive power [ kW ] |
110 / 132 |
| Working capacity V1 max [ l ] |
4500 |
| Minimal portion V2 min [ l ] |
1350 |
| Blenders [ kW ] |
7,5 |
| Blenders [ unit ] |
4 |
| Mixer diameter DN |
1620 |
| Cylinder length L1 [ mm ] |
3000 |
| Average mixing time [ s ] |
70-180s |
| Outlet type D / unit |
1,2 or 3 |
| Outlet type B1 |
Yes |
| Outlet type B2 |
No |
